Hydrax-SkyX tech demo 1.0

[Xavyiy]

Hi all!
These last weeks I've been working on SkyX 0.1 and now that it's finished, I've done a little demo showing how to combine Hydrax and SkyX.

Demo features:

• Hydrax-SkyX full integration
• Full dynamic sky system
• Sun highlights bloom post-processing effect
• Depth texture shadows
• Shader Model 2.0 capable

HD Video:
http://www.youtube.com/watch?v=FL02s_MGIQc - Youtube
http://modclub.rigsofrods.com/xavi/Hydr ... yXDemo.mp4 - Direct link, 83Mb

Download:
Compiled demo: http://modclub.rigsofrods.com/xavi/Hydr ... yXDemo.rar - 16Mb
Sources: http://modclub.rigsofrods.com/xavi/Hydr ... ources.rar - 13.5Mb

Hope you like it!

--------------------------------------------------------------
P.D.: SkyX 0.1 and Hydrax 0.5.1 are going to be released along this week!

[vilgeits]

First on reply: THANKS!

[boyamer]

This is incredible man!

[Xplodwild]

Demo freezes up my computer :/ I get a black/green screen at 0.005fps. I'm running a Core 2 Quad Q6600, 4Go RAM, WinXP SP3, GeForce 7600GT. "Normal" hydrax works well, aswell as your first SkyX preview worked.

Works on my 9300M GS on my Asus N10 laptop btw.

[Illidanz]

Awesome!

Works fine on my pc (win xp, gtx 295)

[xadhoom]

The binary version worked for me without problems... though I only got around 60 FPS and it seems that "Bloom" is not meant to be a HDR compositing pass, right? At least the existing geometry does not show anything like that. FSAA != 0 did not work for me (at least) in windowed mode.
The thin clouds should reflect the light colour when the sun is "beyond/below" them and where are all the volumetric clouds?

BUT: Hey it already looks really good I look forward to your release!

xad

[Kencho]

Beautiful, man!

PS: Great music taste as well

[DanielSefton]

Wowee!

The thin clouds should reflect the light colour when the sun is "beyond/below" them and where are all the volumetric clouds?

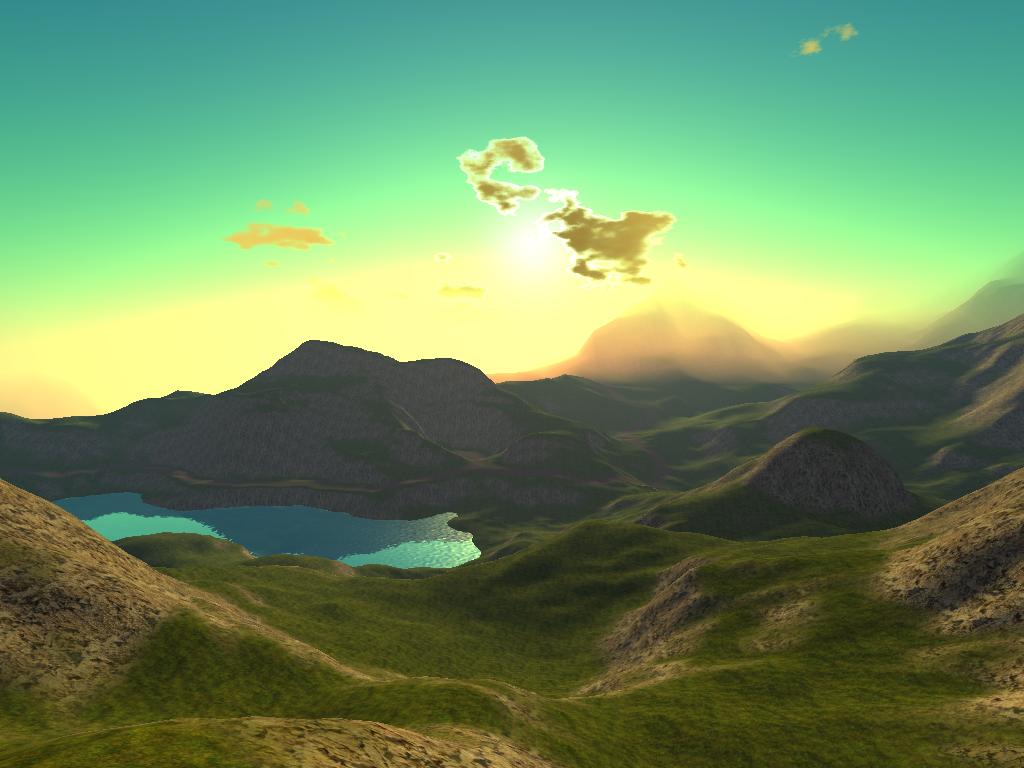

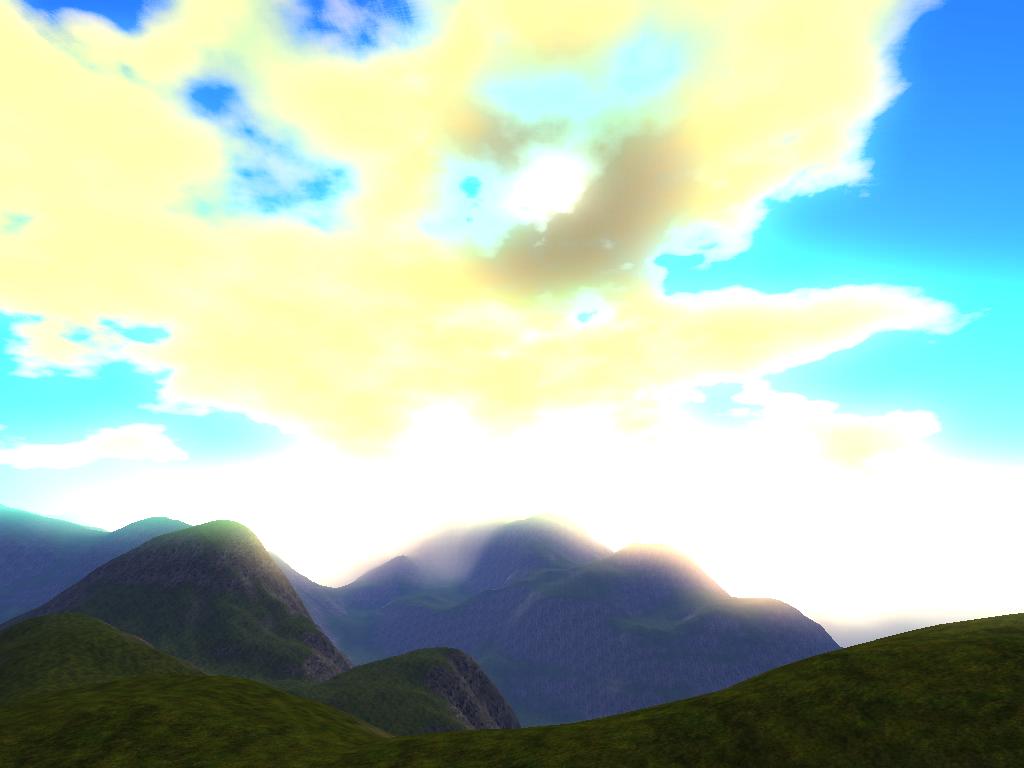

Yeah, for example here's a couple of screenshots of MyRddin's plugin, and his light scattering is tasty: one, two

Also, I think the sunset colour is too yellow, it should be more orangey perhaps like this and this and back to this (from CryEngine).

But seriously, this is CryEngine quality. The way the sun fades into the water is awesome.

[Azgur]

So pretty

[Xavyiy]

At first, thanks for opinions

@Xplodwild
It seems to be something related with your drivers but if you say that the Hydrax and SkyX demo apps works as expected, then the problem must be something related with the bloom compositor or shadows.
So... I've uploaded two .exe's, one with no bloom and the other one with no shadows:
http://modclub.rigsofrods.com/xavi/Hydr ... hadows.exe
http://modclub.rigsofrods.com/xavi/Hydr ... oBloom.exe

Hope one of them works!

@xadhoom
As you say, the implemented 'Bloom' effect is not something like a HDR compositor, it's just for water sun highlights, a very simple an unexpensive compositor, nothing compared with a true HDR system. Anyway SkyX supports true HDR rendering, SkyX::setLightingMode(SkyX::LM_HDR or SkyX::LM_LDR), so... it's perfect for a true HDR rendering app.
About the antialiasing problem, it works as expected on my (two-years-old) 8600GT, so it must be something related with your drivers/graphic card.
About the basic clouds, I've to work on them and add some more light scattering effects like the effect you're talking about, but I will put it in the 0.2 version ToDo.
And about the volumetric clouds, I haven't enabled them in the demo, but don't worry, I'll release a demo showing how to use them in the SkyX 0.1 package
About FPS, I get around 50~60 in 1440x900 - fullscreen with the bloom compositor enabled and 'high quality' texture shadows, something very reasonable if you have present that I obtain about 55~65 with the simple Hydrax demo(No bloom, no shadows, no sky).
Anyway I'll work on Hydrax cpu speed enhancements in the future.

@DanielSefton
For clouds -> xadhoom reply

And for the sunset/general sky colours, don't worry, SkyX uses a simplified physically model that allows you to modify in real-time(without any kind of speed drop) the sky colours.
Just see SkyX::AtmosphereManager::Options::WaveLength
Anyway, I'll improve the Sky shader in a future. (Using a precomputed texture for speed-up things, etc).


Xavi

[_tommo_]

really awesome

The water given a better environment could be on par with Crysis' as for visual impact... the sky looks just perfect; it is beautiful while not attracting attention, being a perfect backdrop.

The only thing that looks a bit wrong IMHO are the caustics and the depth trasparency, that are too strong in the first depth interval (0-something) to then fade to nothing too fast, like in this screenshot.
It feels like if there is a layer of completely trasparent water over a layer of opaque blue water... not very natural.
In nature (like with rocky sea bottoms) you gradually lose the ability to see reds, then blues, then violets with increasing depth, so that you should still see white rocks under ~12 m of clear water.

Anyway i don't know how many people could notice this, the impact is really superb!

[Xplodwild]

@Xplodwild
It seems to be something related with your drivers but if you say that the Hydrax and SkyX demo apps works as expected, then the problem must be something related with the bloom compositor or shadows.
So... I've uploaded two .exe's, one with no bloom and the other one with no shadows:
http://modclub.rigsofrods.com/xavi/Hydr ... hadows.exe
http://modclub.rigsofrods.com/xavi/Hydr ... oBloom.exe

The NoShadows one works (NoBloom doesn't work ofcourse). So it's something related with shadows
Anyway, great work, looks beautiful.

[boyamer]

Can't wait for SkyX and Hydrax source code

[jacmoe]

This looks and feels totally awesome

What's the license for SkyX ?

[DanielSefton]

And for the sunset/general sky colours, don't worry, SkyX uses a simplified physically model that allows you to modify in real-time(without any kind of speed drop) the sky colours.

Will look forward to tweaking the params.

Demo freezes up my computer :/ I get a black/green screen at 0.005fps ... The NoShadows one works (NoBloom doesn't work ofcourse). So it's something related with shadows

Just to echo that - same for me. NoShadows works and the default one hangs and alternates between black and green (nVidia 6600)

[Nargil]

I hope you don't mind some critique:
- I don't like the stars. There are to many of them and you can see the skydome rotating.
- I'd like to see the stars reflection on hydrax.
- the shadows look a bit bad, but this isn't paradise demo, is it ?
- you can see the specular on the issle even if the sun is underwater.

[Xavyiy]

@Xplodwild & DanielSefton
Try with this .exe:
http://modclub.rigsofrods.com/xavi/Hydr ... o_Test.exe

@jacmoe
LGPL , so.. don't worry about the Hydrax-SkyX demo GPL license (Anyway feel free to use some pieces of the main.cpp code in your app! Even if you use a different license..)

@Nargil
Critiques are always welcome
About current stars, you've reason, them are a simple seamless texture tiled in the skydome shader.
I'll work in a good stars system for future versions.
I've disabled the stars in the reflection map due to the feel is more realistic without the starfield, but if you want to see reflected in the water and you've the time, just comment this line: mSkyX->setStarfieldEnabled(false); in the main.cpp file (I hope release SkyX 0.1 and Hydrax 0.5.1 along this week).
About shadows, them are very very basic and even in high quality they doesn't look very well, but of course, as you say, it is not the Paradise demo
About the island lighting, to be honest I haven't changed it from the basic Hydrax demo app, I've just done some little changes for shadows, but nothing more...
I hope the Paradise demo will be something 'x10 this demo'

[Zeph]

Thanks for this eye-candy Xavyiy, jaw-dropping.

I have a question aswell though, do you plan to support rendering atmosphere from outer space? (or even better, do your shaders and plugin already support it?)
Such a feature would make the plugin even more useful among Ogre community, I believe.

Juding your parameters (from extended info screen), I presume you used the gpugems article as a source of information aswell.
This would lead me to think the shader (by altering height value) adapts to different altitudes. (up to space)
I'm soon stepping into atmosphere rendering in my small hobby sandbox project, so learning from your code would be a nice opportunity.

Again, congratulations for getting all that working.

[spookyboo]

Looks great. I still have that holiday feeling. Very relaxed

[KungFooMasta]

Super cool!

I agree with the star dome, the number of stars are overkill and its easy to see the sky rotating. I imagine the moon would produce enough light for the trees to cast shadows, wouldn't it? (I didn't see any shadows at night time)

Again, the effects look really good overall!

[spacegaier]

I have seen a lot of cool stuff done with Ogre while my time here, but this is definetly top quality!!! The scene is totally awesome and the realism really stunning.

I think sinbad should watch this video in an infinite loop, so that he can cancel his vacation .

[Xplodwild]

@Xplodwild & DanielSefton
Try with this .exe:
http://modclub.rigsofrods.com/xavi/Hydr ... o_Test.exe

This one works well, with shadows. 35fps @ 1152x864x32, windowed

[Juan]

Mamma mia, looks like great
You have done merits to enjoy a Cruzcampo very cool in your fovorite bar
Xplodwild: I have an amd x2 4400+, 2 gb ram, a 8600 gt and win 7 64 bits and at maximun of all it has an average of 16 fps at 1280*1024, so maybe your 7600 gt can´t work with that demo

[Xplodwild]

Xplodwild: I have an amd x2 4400+, 2 gb ram, a 8600 gt and win 7 64 bits and at maximun of all it has an average of 16 fps at 1280*1024, so maybe your 7600 gt can´t work with that demo

Well, at 1280x1024x32, windowed, it runs at 26fps with high shadows while looking at the island and some palms. I think you're limited by your processor (or you've too much tasks in background :p ).

[Juan]

Well, at 1280x1024x32, windowed, it runs at 26fps with high shadows while looking at the island and some palms. I think you're limited by your processor (or you've too much tasks in background :p ).

So finally you can run it, good, it one of these things that you really have to see, it is great

I only had Blender running, but windows is windows
