Premultiplied alpha texture with fade transparency mode

Post by TaaTT4 »

It's time to put in the "done" column something I have in my todo list since... (probably) forever. I instructed artists to move from the traditional alpha blending pipeline to the premultiplied alpha pipeline.

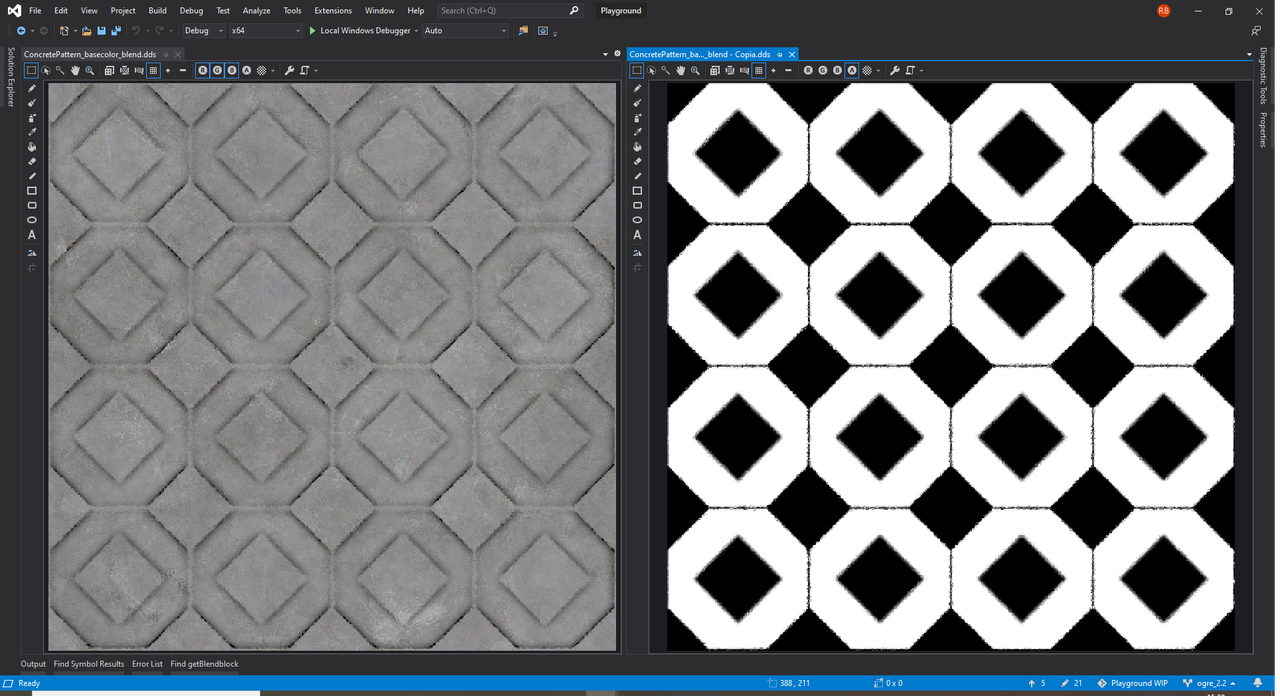

So, what once was so (RGB on the left, alpha on the right):

Has now become (black where alpha is equal to 0):

Once you moved from traditional alpha blending to premultiplied alpha, you also have to adapt the blend function. From this (SBF_SOURCE_ALPHA / SBF_ONE_MINUS_SOURCE_ALPHA):

Code: Select all

DestinationColor.rgb = (SourceColor.rgb * SourceColor.a) + (DestinationColor.rgb * (1 - SourceColor.a))
To this (SBF_ONE / SBF_ONE_MINUS_SOURCE_ALPHA):

Code: Select all

DestinationColor.rgb = (SourceColor.rgb * One) + (DestinationColor.rgb * (1 - SourceColor.a));
Since TransparencyModes::Fade mode uses the first blend function (while TransparencyModes::Transparent uses the second blend function), when I use it I have to override the blend block:

Code: Select all

const auto blendblock = datablockPbs->getBlendblock();

auto blendblockTemplate = *blendblock;
blendblockTemplate.mSourceBlendFactor = SBF_ONE;
blendblockTemplate.mDestBlendFactor = SBF_ONE_MINUS_SOURCE_ALPHA;

if (*blendblock != blendblockTemplate)
{
	datablockPbs->setBlendblock(blendblockTemplate);
}

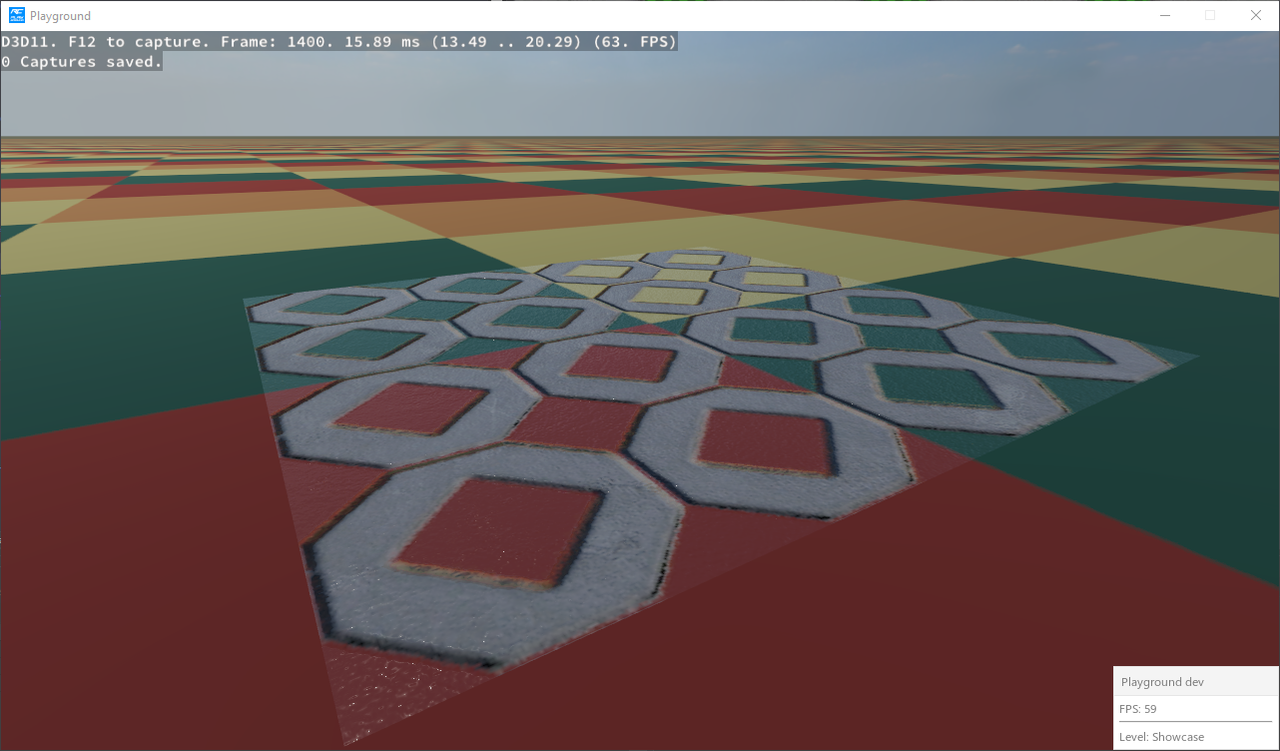

But doing so trasforms my concrete tile in a piece of glass/plastic:

Am I doing something wrong? Could I be on error, but in a private chat with Matias I remember he told me to use SBF_SOURCE_ALPHA / SBF_ONE_MINUS_SOURCE_ALPHA blend function even for TransparencyModes::Fade mode when textures with premultipled alpha are in play.
Senior game programmer at Vae Victis
Working on Racecraft

User avatar
dark_sylinc
OGRE Team Member
OGRE Team Member
Posts: 4501
Joined: Sat Jul 21, 2007 4:55 pm
Location: Buenos Aires, Argentina
x 936
Contact:

Re: Premultiplied alpha texture with fade transparency mode

Post by dark_sylinc »

If the areas with 0 alpha still have lighting (like your case) then those regions still somehow have colour (one would have to research why is that, and that's probably the root of your problems)

User avatar
TaaTT4
OGRE Contributor
OGRE Contributor
Posts: 241
Joined: Wed Apr 23, 2014 3:49 pm
x 45

Re: Premultiplied alpha texture with fade transparency mode

Post by TaaTT4 »

dark_sylinc wrote:
Fri Jun 12, 2020 6:31 pm
If the areas with 0 alpha still have lighting (like your case) then those regions still somehow have colour (one would have to research why is that, and that's probably the root of your problems)
Hhmmm... roughness and metalness are both uniform colors set by code. Could be the normal map made like this?
I guess I have to fatten it in the areas where RGB is black and alpha is 0.
Senior game programmer at Vae Victis
Working on Racecraft

User avatar
dark_sylinc
OGRE Team Member
OGRE Team Member
Posts: 4501
Joined: Sat Jul 21, 2007 4:55 pm
Location: Buenos Aires, Argentina
x 936
Contact:

Re: Premultiplied alpha texture with fade transparency mode

Post by dark_sylinc »

What I mean is that the transparent regions the diffuse and specular colours should be 0; but if you see light; it means for some reason they aren't both pitch black.

User avatar
TaaTT4
OGRE Contributor
OGRE Contributor
Posts: 241
Joined: Wed Apr 23, 2014 3:49 pm
x 45

Re: Premultiplied alpha texture with fade transparency mode

Post by TaaTT4 »

dark_sylinc wrote:
Fri Jun 12, 2020 7:06 pm
What I mean is that the transparent regions the diffuse and specular colours should be 0; but if you see light; it means for some reason they aren't both pitch black.
It's strange because I call setMetalness(0.0f) (I'm using metal workflow). Anyway, I'll take a look with RenderDoc and I'll report further discoveries.
Senior game programmer at Vae Victis
Working on Racecraft

User avatar
dark_sylinc
OGRE Team Member
OGRE Team Member
Posts: 4501
Joined: Sat Jul 21, 2007 4:55 pm
Location: Buenos Aires, Argentina
x 936
Contact:

Re: Premultiplied alpha texture with fade transparency mode

Post by dark_sylinc »

Mmmm I strongly suspect this means that a metalness of 0 leaves you with 0.03 of specular:

Code: Select all

pixelData.F0 = lerp( make_float_fresnel( 0.03f ), pixelData.diffuse.xyz * 3.14159f, metalness );
pixelData.diffuse.xyz = pixelData.diffuse.xyz - pixelData.diffuse.xyz * metalness;
Try a metalness of 1 instead.

User avatar
TaaTT4
OGRE Contributor
OGRE Contributor
Posts: 241
Joined: Wed Apr 23, 2014 3:49 pm
x 45

Re: Premultiplied alpha texture with fade transparency mode

Post by TaaTT4 »

dark_sylinc wrote:
Fri Jun 12, 2020 7:18 pm
Try a metalness of 1 instead.
Done. Still see something in transparent areas:
Senior game programmer at Vae Victis
Working on Racecraft

User avatar
TaaTT4
OGRE Contributor
OGRE Contributor
Posts: 241
Joined: Wed Apr 23, 2014 3:49 pm
x 45

Re: Premultiplied alpha texture with fade transparency mode

Post by TaaTT4 »

dark_sylinc wrote:
Fri Jun 12, 2020 7:06 pm
What I mean is that the transparent regions the diffuse and specular colours should be 0; but if you see light; it means for some reason they aren't both pitch black.
I've created a patch that reproduces the problem in Sample_PbsMaterials:

Code: Select all

From ff129aba7f7a1661c80bd10de5644cbdfbeac2f6 Mon Sep 17 00:00:00 2001
From: TaaTT4 <raffaele.bratta@gmail.com>
Date: Tue, 16 Jun 2020 12:00:19 +0200
Subject: [PATCH] PREMULTIPLIED_ALPHA

---
 .../PbsMaterials/PbsMaterialsGameState.cpp    | 39 +++++++++++++++++++
 1 file changed, 39 insertions(+)

diff --git a/Samples/2.0/Showcase/PbsMaterials/PbsMaterialsGameState.cpp b/Samples/2.0/Showcase/PbsMaterials/PbsMaterialsGameState.cpp
index f07974a80..12673c542 100644
--- a/Samples/2.0/Showcase/PbsMaterials/PbsMaterialsGameState.cpp
+++ b/Samples/2.0/Showcase/PbsMaterials/PbsMaterialsGameState.cpp
@@ -219,6 +219,45 @@ namespace Demo

         mCameraController = new CameraController( mGraphicsSystem, false );

+        Ogre::v1::MeshPtr plane_v1 = Ogre::v1::MeshManager::getSingleton().createPlane(
+            "plane_v1", Ogre::ResourceGroupManager::DEFAULT_RESOURCE_GROUP_NAME,
+            Ogre::Plane( Ogre::Vector3::UNIT_Y, 0.0f ), 1.0f, 1.0f, 1, 1, true, 1, 1.0f, 1.0f,
+            Ogre::Vector3::UNIT_Z, Ogre::v1::HardwareBuffer::HBU_STATIC,
+            Ogre::v1::HardwareBuffer::HBU_STATIC );
+
+        Ogre::MeshPtr plane_v2 = Ogre::MeshManager::getSingleton().createByImportingV1(
+            "plane_v2", Ogre::ResourceGroupManager::DEFAULT_RESOURCE_GROUP_NAME, plane_v1.get(), true,
+            true, true );
+
+        Ogre::HlmsManager *hlmsManager = mGraphicsSystem->getRoot()->getHlmsManager();
+        Ogre::HlmsPbs *hlmsPbs = static_cast<Ogre::HlmsPbs *>( hlmsManager->getHlms( Ogre::HLMS_PBS ) );
+
+        Ogre::HlmsPbsDatablock *planeDatablock = static_cast<Ogre::HlmsPbsDatablock *>(
+            hlmsPbs->createDatablock( "plane", "plane", Ogre::HlmsMacroblock(), Ogre::HlmsBlendblock(),
+                                      Ogre::HlmsParamVec() ) );
+
+        planeDatablock->setWorkflow( Ogre::HlmsPbsDatablock::MetallicWorkflow );
+        planeDatablock->setTexture( Ogre::PBSM_DIFFUSE, "ConcretePattern_basecolor.dds" );
+        planeDatablock->setMetalness( 0.0f );
+        planeDatablock->setRoughness( 0.0f );
+        planeDatablock->setTexture( Ogre::PBSM_REFLECTION, "SaintPetersBasilica.dds" );
+        planeDatablock->setTransparency( 1.0f, Ogre::HlmsPbsDatablock::Fade );
+
+        Ogre::HlmsBlendblock blendblock = *planeDatablock->getBlendblock();
+        blendblock.mSourceBlendFactor = Ogre::SBF_ONE;
+        blendblock.mDestBlendFactor = Ogre::SBF_ONE_MINUS_SOURCE_ALPHA;
+
+        planeDatablock->setBlendblock( blendblock );
+
+        Ogre::Item *planeItem = sceneManager->createItem( plane_v2, Ogre::SCENE_STATIC );
+        planeItem->setDatablock( planeDatablock );
+
+        Ogre::SceneNode *node =
+            sceneManager->getRootSceneNode()->createChildSceneNode( Ogre::SCENE_STATIC );
+
+        node->setPosition( 0.0f, 0.001f, 5.0f );
+        node->attachObject( planeItem );
+
         TutorialGameState::createScene01();
     }
     //-----------------------------------------------------------------------------------
--
2.24.0.windows.2
The ConcretePattern_basecolor.dds texture can be found here.
No matter what metalness value I choose, If I use Fade as a transparency mode and SBF_ONE / SBF_ONE_MINUS_SOURCE_ALPHA as a blend function, I always see the plane badly rendered (not completely transparent where it should be).
