Re: New Templates for Xcode 4
Posted: Wed Jun 22, 2011 8:10 am
by NewOne
masterfalcon wrote: It's related to the LogManager allocation in the sample.
I thought that meant you know about the issue. I tried to --forget it. However the packages have not bin found. I installed the .pkg by just double clicking on it. Now I installed them again via console and now they are listed at pkgutil --packages. How can I uninstall the other ones? Is it enough to just remove the org.... files?
I am running MacOS 10.6, XCode 4.0.2, SDK 3.2 and did not modify the latest prebuilt Ogre folder except of copying the latest Dependencies folder into it. Then I installed the Templates.
Re: New Templates for Xcode 4
Posted: Wed Jun 22, 2011 9:00 am
by masterfalcon
I am familiar with the issue, but I believe that it was resolved. BTW, is this an iOS or OS X project?
If there are other packages listed as Ogre templates, you could try forgetting them too. Otherwise you could just delete them from ~/Library/Developer/Xcode/Templates then reinstall.
Re: New Templates for Xcode 4
Posted: Wed Jun 22, 2011 8:26 pm
by NewOne
So I removed the Ogre Folder at ~/Library/Developer/Xcode/Templates/Ogre, removed the Generic Ogre Script.xctemplate in file templates and --forget all ogre packages installed. I am somehow still able to create an Ogre project. The same error appears after compiling.
I am trying to run an Mac OS X app.
Re: New Templates for Xcode 4
Posted: Wed Jun 22, 2011 10:39 pm
by masterfalcon
Maybe check to see if you have them in /Developer/Library/Xcode/Templates
Re: New Templates for Xcode 4
Posted: Wed Jun 22, 2011 11:36 pm
by NewOne
Yeah, I have successfully uninstalled the templates reinstalled them and got the same error, which somewhere arises inside the function Ogre::Root. If I add a breakpoint before that I get several warnings, which are not there without the breakpoint:
Code: Select all
Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(ftsystem.o)" - no debug information available for "builds/unix/ftsystem.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(ftinit.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/base/ftinit.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(ftbase.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/base/ftbase.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(truetype.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/truetype/truetype.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(type1.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/type1/type1.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(cff.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/cff/cff.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(type1cid.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/cid/type1cid.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(pfr.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/pfr/pfr.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(type42.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/type42/type42.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(winfnt.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/winfonts/winfnt.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(pcf.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/pcf/pcf.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(bdf.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/bdf/bdf.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(sfnt.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/sfnt/sfnt.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(autofit.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/autofit/autofit.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(pshinter.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/pshinter/pshinter.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(raster.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/raster/raster.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(smooth.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/smooth/smooth.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(ftgzip.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/gzip/ftgzip.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(ftlzw.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/lzw/ftlzw.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(psaux.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/psaux/psaux.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/release/libfreetype.a(psnames.o)" - no debug information available for "/Users/davidrogers/Documents/Development/Ogre/Dependencies/freetype-2.4.3/src/psnames/psmodule.c".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/libboost_thread-xgcc42-mt-1_46_1.a(thread.o)" - no debug information available for "libs/thread/src/pthread/thread.cpp".
warning: Could not find object file "/Users/davidrogers/Documents/Development/Ogre/ogre-v1-7-3/Dependencies/lib/libboost_thread-xgcc42-mt-1_46_1.a(once.o)" - no debug information available for "libs/thread/src/pthread/once.cpp".
Is there some document anywhere, where it is explained what is needed for a basic project and what files have to be added to the application package?
Re: New Templates for Xcode 4
Posted: Mon Aug 01, 2011 7:56 pm
by alsenes
Hi, I have a problem compiling any project crated with the template when I enable GL ES2 support via the template checkbox, both with 1.7.3 SDK and with 1.8 downloaded via mercury, cloned, compiled via the script posted on the wiki and with the template pointing to the 1.8 build dir.
Te problem being:
Lexicological or preprocessor Issue
'OgreGLES2Plugin.h' file not found
on line 46 file OgreStaticPluginLoader.h
45 #ifdef OGRE_STATIC_GLES2
46 # include "OgreGLES2Plugin.h"
47 #endif
Any help would appreciated as I don't have much idea right now, also, what would be the steps needed to activate GLES2 render system without the checkbox?
More information:
After compiling 1.8 with the script (
http://ogre3d.org/tikiwiki/Building+Fro ... evelopment) with the correct things changed for 1.8, I have 3 folders, lib, include, iPhoneDependencies
Under lib/release I do have libRenderSystem_GLES2Static.a.
but under include/ogre/plugins and include/ogre/rendersystem I have none references to anything like GLES2
Re: New Templates for Xcode 4
Posted: Mon Aug 01, 2011 8:20 pm
by masterfalcon
You will probably need to add a header search path in your project to point to where that header is.
Re: New Templates for Xcode 4
Posted: Mon Aug 01, 2011 8:44 pm
by alsenes
Well I have it working now, basically just copied the whole RenderSystems/GLES2 dir inside include/ogre/rendersystems/GLES2
Now debug logs shows GLES2 rendersystem being initialized. I'll try a couple of shaders to see if it work's correctly but it seems ok now.
Re: New Templates for Xcode 4
Posted: Wed Aug 03, 2011 4:04 am
by petrocket
Looks like I'm having the same problem as NewOne. I downloaded the 1.7.3 SDK, templates, dependancies and created a new Ogre project from the template. When I run the project it gets to the 'Creating resource group General' and hangs.
I'm using XCode 4.2 and trying to build a Mac OSX application NOT an iOS application. The iOS application works great, but not the Mac one.
I tried the to uninstall the template packages from the terminal and that failed so I just deleted the folders in /Developer/Library/Xcode/Templates and the re-downloaded & re-installed, but no luv.
Re: New Templates for Xcode 4
Posted: Wed Aug 03, 2011 4:18 am
by masterfalcon
Actually the templates are installed in ~/Library/Developer/Xcode/Templates. I need some more info though. What OS is this on?
Re: New Templates for Xcode 4
Posted: Wed Aug 03, 2011 6:08 pm
by petrocket
Oh sorry that was a typo on my part - I did delete the ones you mentioned
masterfalcon wrote:Actually the templates are installed in ~/Library/Developer/Xcode/Templates. I need some more info though. What OS is this on?
I'm on OSX 10.6.8 on an intel MacBookPro.
My Xcode version is 4.2 (4C104) and I have the IOS 5 dev kit installed. I do recall installing fink and maybe Macports a while ago but I'm pretty sure they have been deleted.

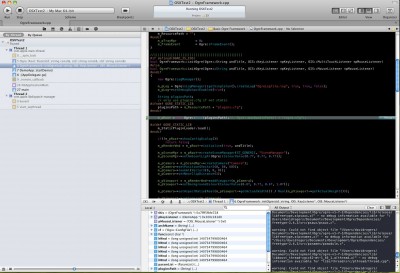

Couple screenshots:
- Stack Screenshot
And the project files with the media folder removed.
- OSXTestProject.zip
- Project with media folder removed because of forum file upload size limit
- (31.4 KiB) Downloaded 254 times
Not sure if this has anything to do with it, but the plugins.cfg has the PluginsFolder set to ./ but the actual renderssytem_gl file is in /Plugins inside the .app package. Should the plugins folder path be something like ./Plugins or ./../Plugins ?
Well, I tried that and it didn't help, but dunno if I was on the right track.
Re: New Templates for Xcode 4
Posted: Wed Aug 03, 2011 7:54 pm
by petrocket
Well, I came up with a temporary fix.
If I comment out the m_pLog lines and the new Ogre::LogManager(); line and append
Code: Select all
m_pLog = Ogre::LogManager::getSingleton().getDefaultLog();
After m_pRoot is created like so:
Code: Select all
//new Ogre::LogManager();
//m_pLog = Ogre::LogManager::getSingleton().createLog("OgreLogfile.log", true, true, false);
//m_pLog->setDebugOutputEnabled(true);
String pluginsPath;
// only use plugins.cfg if not static
#ifndef OGRE_STATIC_LIB
pluginsPath = m_ResourcePath + "plugins.cfg";
#endif
m_pRoot = new Ogre::Root(pluginsPath);//, Ogre::macBundlePath() + "/ogre.cfg");
#ifdef OGRE_STATIC_LIB
m_StaticPluginLoader.load();
#endif
if(!m_pRoot->showConfigDialog())
return false;
m_pLog = Ogre::LogManager::getSingleton().getDefaultLog();
Then it runs fine!
